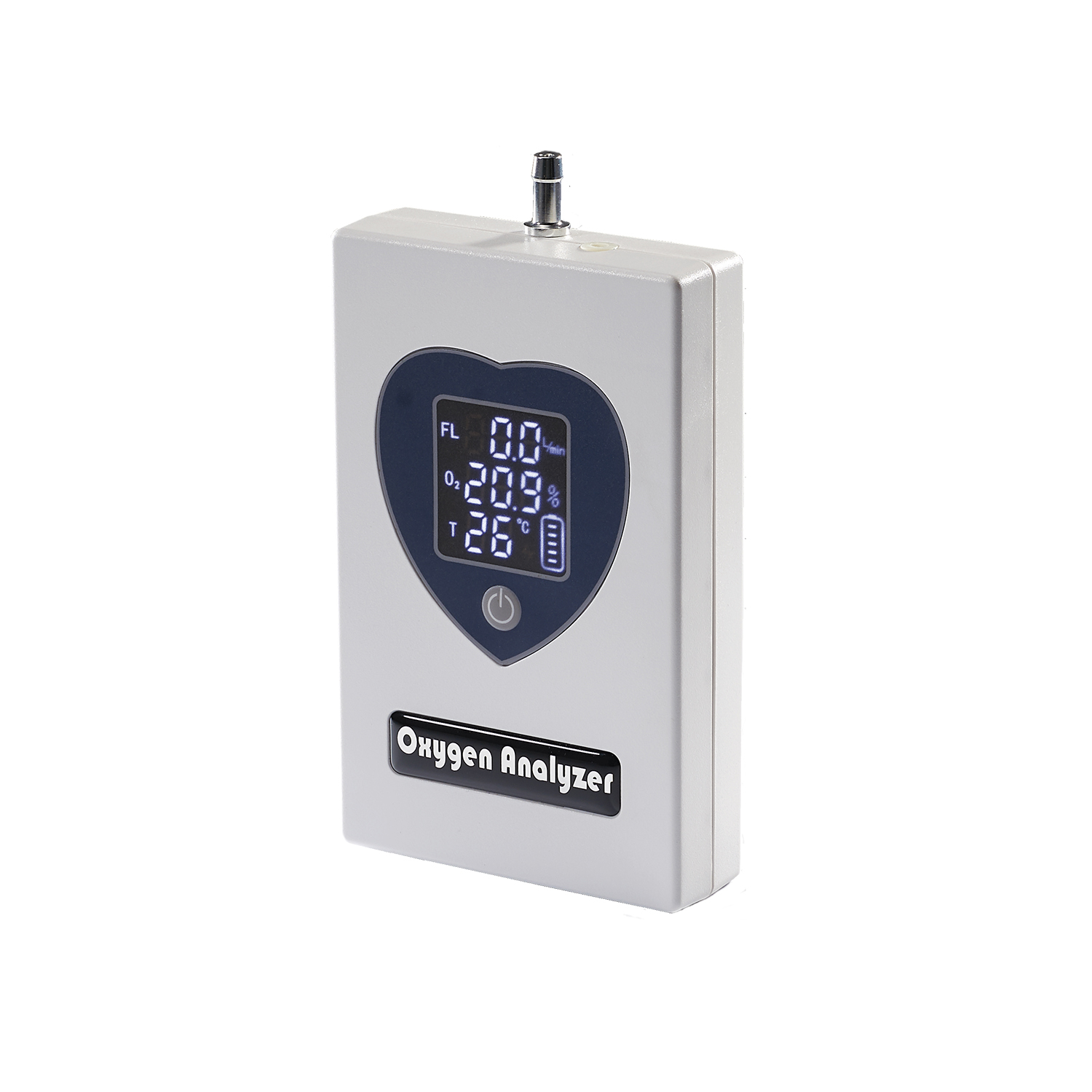

Oxygen Analyzer
Oxygen Analyzer
Item No.: OA-01A001A
0-0
Specification
| Power | 8 - 15VDC / 12mA |
| Dimensions / Weights | 142mm x 89mm x 28mm / 198g |
| Flow measurement range |
0 - 10.0LPM Can be customized according to user requirements 0 - 20.0LPM, direct measurement bypass |
| Flow measurement resolution | ±0.01LPM |
| Flow measurement accuracy | ±0.2LPM or of reading 4% (whichever is greater) |
| Max. measurement pressure | 150 kpa |
| Operation ambient | 0 ~ 40℃/≤90%RH |
| Storage ambient | -20℃ ~ 85℃/≤90%RH |
|
Oxygenconcentration measurement range |
20% ~ 96% |
|
Oxygenconcentration measurement accuracy |
±1.8% |
| Response | 0.5s |
| Calibrations | Factory calibration, do not need to re calibrate |
